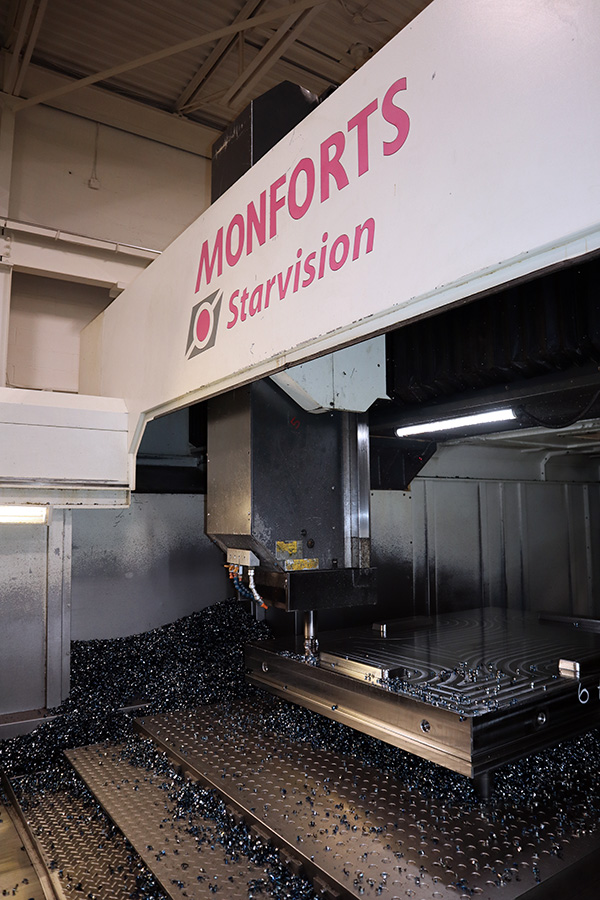

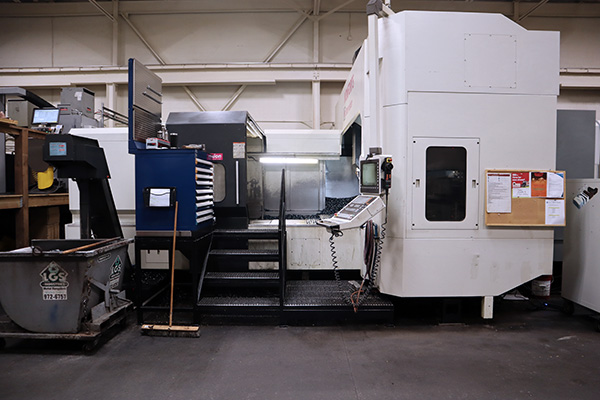

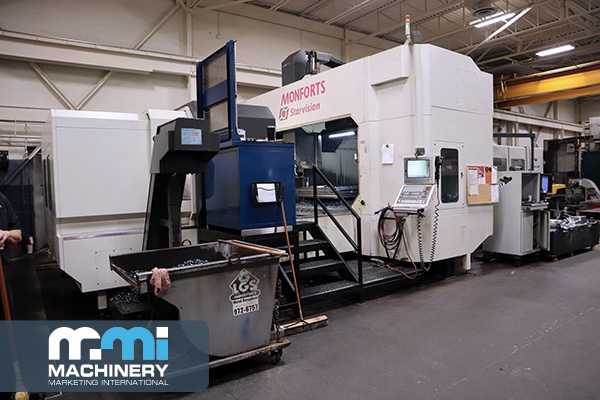

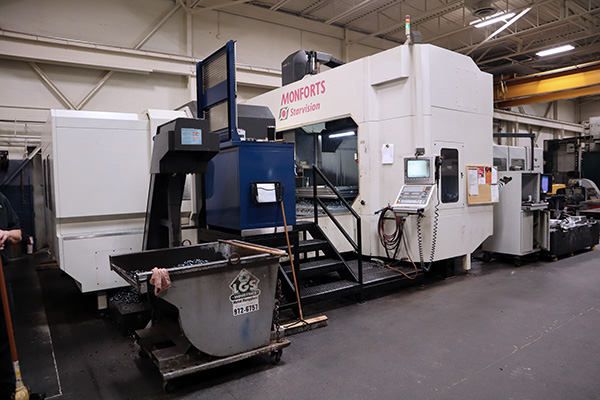

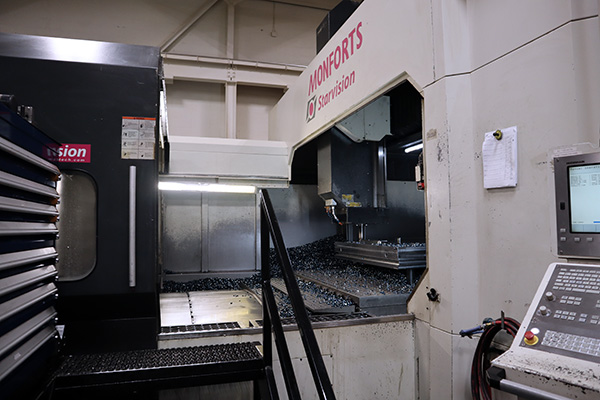

Starvision PC-3223 2013

MACHINE SPECIFICATIONS

• Spindle Taper:

  CAT-50

• Power required:

  65 kva

• Max. Tool Length:

  350 mm

• Max. tool size:

  125/245 mm

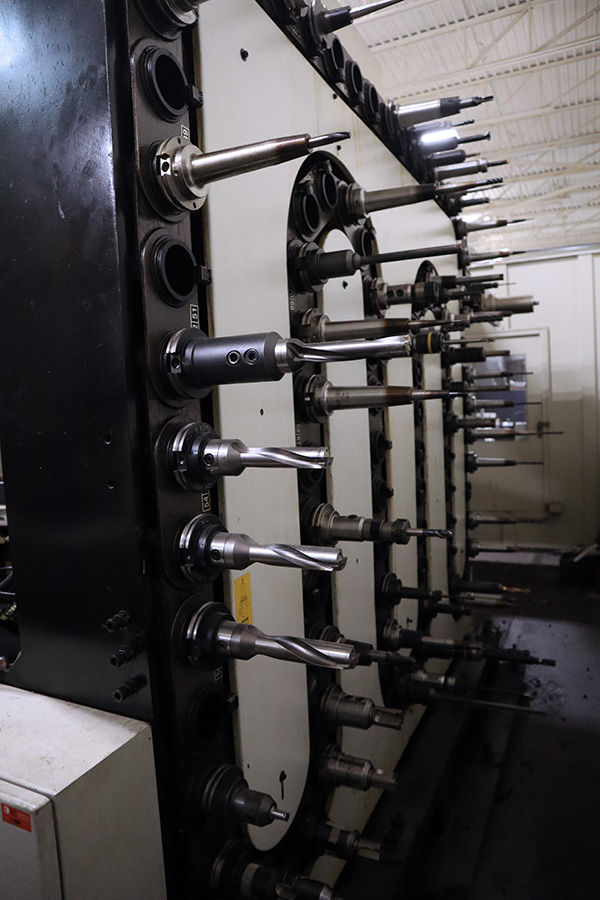

• Tool Magazine:

  90 pcs

• Cutting Feedrate:

  7,000

• Rapid Traverse:

  12 / 12 / 12 (X/Y/Z)

• Spindle Motor:

  18.5 / 22 kw

• Spindle Speed:

  6,000 RPM

• X Axis Travel:

  3,200 / 125"

• T-Slot Size:

  28x11x180 mm (Width x Number x Pitch)

• Max Table Load:

  24,250 Lbs

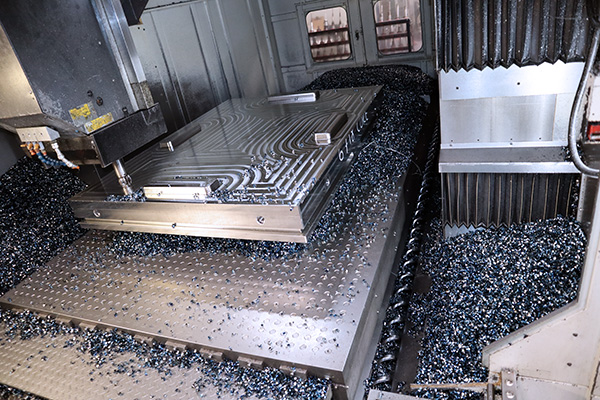

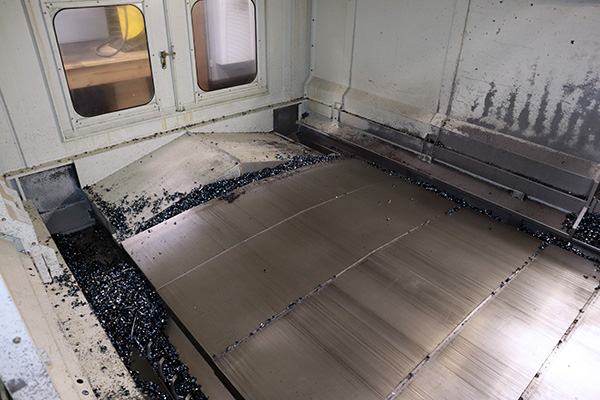

• WORKING TABLE SIZE:

  3,000mm / 120" x 2,000mm / 78.74

• Distance Between Columns:

  2,500 mm/ 98.43"

• Distance from Spindle Nose to Table:

  150-1,150 mm

• Z-Axis Travel:

  1,000 / 39.37

• Y Axis Travel:

  2,300 / 90"
