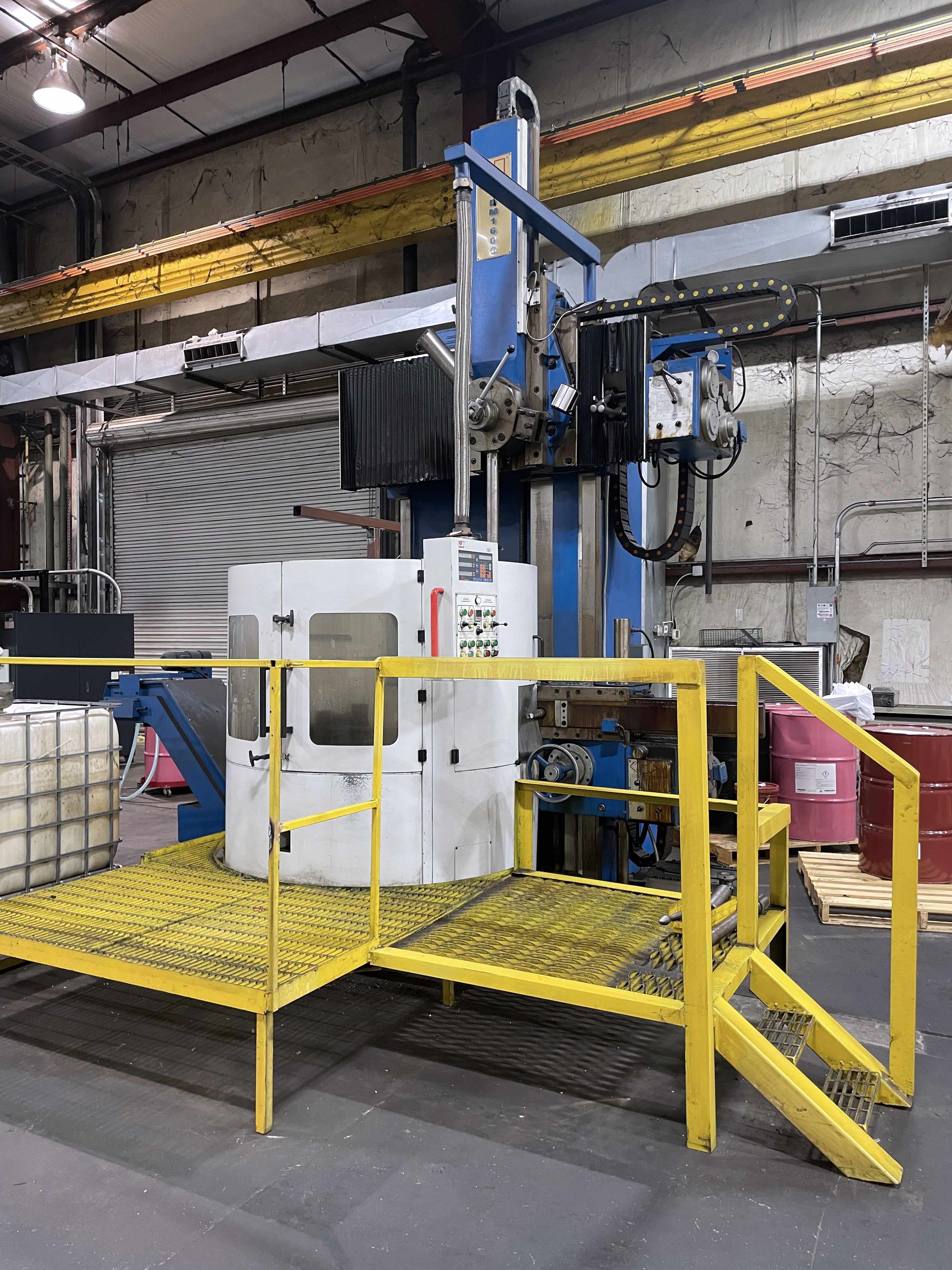

Knuth VDM 1600 2014

machine specifications

• Machining height (max.) :

  47 in

• Turning Diameter:

  vertical 63 in

• Max. Workpiece Weight:

  11000 lbs

• X Axis Travel:

  36 in

• Z Axis Travel:

  33 in

• Z Axis Travel:

  33 in

• Y Axis Travel:

  31 in

• Headstock Speed:

  0.5 rpm - 200 rpm

• Spindle Torque:

  27659 ft.lb

• Chuck Diameter:

  55 in lathe

• Rapid Feed Rate(X-Axis):

  157.48 in/min

• Rapid Feed Rate (Z-Axis):

  157.48 in/min

• W Axis:

  17 in/min Feed

• Number of Tool Stations:

  4 positions

• Tool Change Time:

  10 sec

• Max Tool Weight:

  55 lbs

• Positioning Accuracies:

  0.0012 in

• Repeatability:

  0.00059 in

• Overall Dimensions:

  256 in x 166 in x 174 in (length x width x height)

• Approx. Weight:

  26400 lbs
