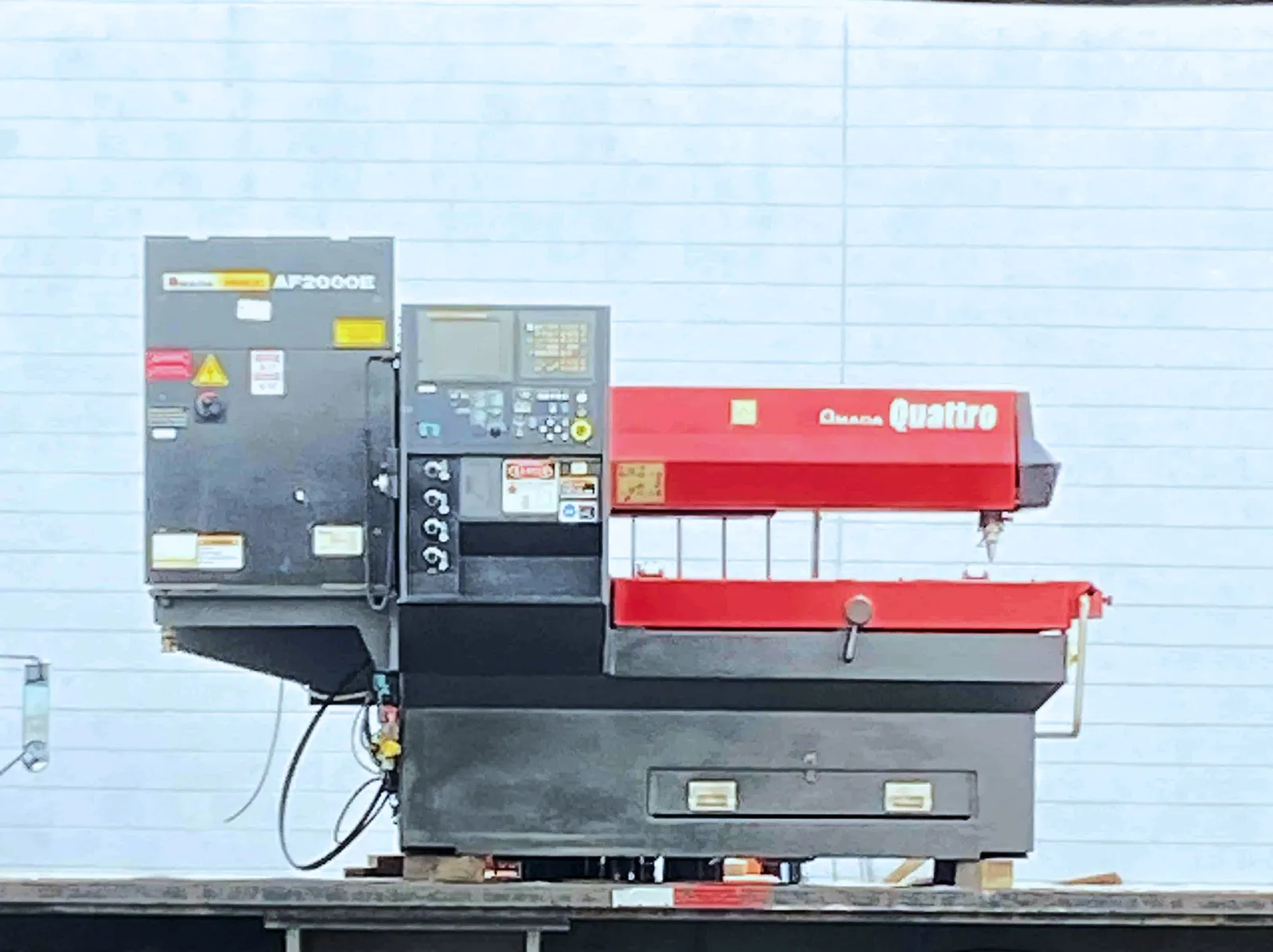

Amada AF2000E 2007

machine specifications

• Laser Type:

  Output CO laser, axial-flow AF 2000E oscillator

• Laser Power:

  2,000 W (2 kW)

• Working Area:

  (X × Y travel) 1,260 mm × 1,260 mm

• Z Axis Travel:

  100 mm

• Maximum Material Thickness:

• Mild steel with O:

  ~12 mm

• Stainless Steel:

  ~5 6 mm

• Aluminium:

  ~3 4 mm

• Controller:

  CNC FANUC 16i L / 16i LB series,

• Electrical / Power Requirements Main connection:

  ~200 V; ~40 kVA

• Air Pressure Required:

  Around 6 bar compressed air

• Positioning / Travel Speeds:

• X/Y/Z:

  ~30 / 30 / 15 m/min

• Simultaneous speed:

  ~42 m/min

• Accuracy / Repeatability:

• Positioning Accuracy:

  ±0.01 mm

• Repeatability:

  ±0.005 mm

• Other Features / Options:

• HS sensing head:

• CleanCut, AluCut modes:

• Gas control, automatic corner data:

• Optional tube cutting device:
